Impulse 120T Classic for TEREX

Impulse 120T Classic for TEREX
265 kg
Breaker weight
68 mm
Tool diameter

Tool operating length, mm

400

Maximum pressure, bar

200

Impact Energy, J

850
Price on request Sale

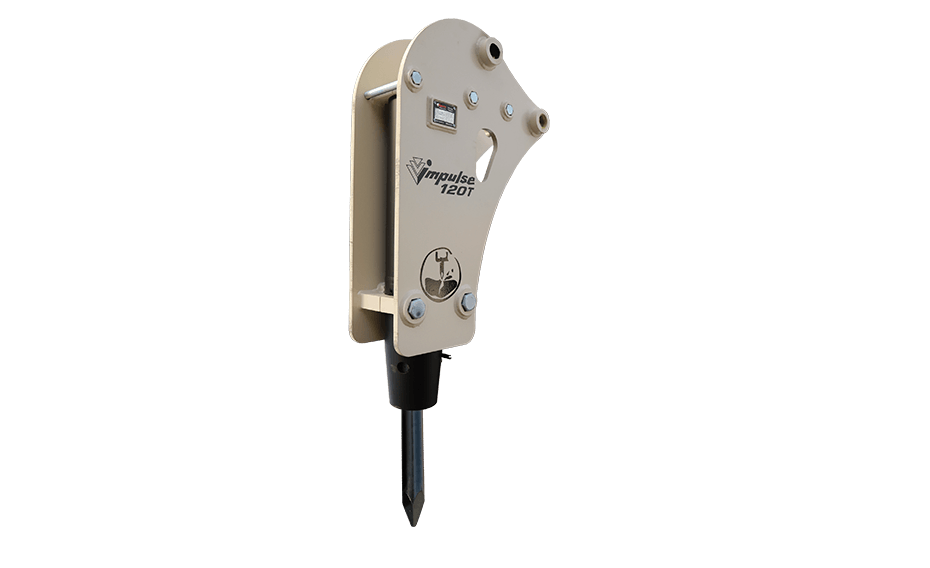

We would like to introduce the hydraulic breaker for Terex 860 / 825 – Impulse 120T Classic. This is a modification of the legendary hydraulic breaker Impulse 120 Classic designed specifically for Terex backhoe loaders. This model is free of a separate suspension and has all-in-one design including jaws, which ensures rigidity and high reliability of the structure.

Hydraulic breaker Impulse 120T Classic has a number of advantages as compared to the base model:

  • the most affordable price on the market;
  • simpler and more reliable design;
  • the housing ensures the correct transportation position of the hydraulic breaker;
  • less time-consuming maintenance (you don't need to tighten the suspension bolts and replace them in case of wear).

Benefits of Impulse Classic hydraulic breakers:

  • No tie through-bolts, which prevents scoring of piston and sleeve.
  • The working tool bushing is one-piece and has an extended service life up to 30%.
  • Possibility to install a hydraulic accumulator (option).
  • The jaws are made of high-strength reinforced steel QUEND with strength and wear resistance up to 20% higher.
  • Pressing force is 2 times lower; it provides fast start and perfect positioning.
  • Consumables are quickly replaced without use of presses and special pullers.
  • Special anti-corrosion coating of the striker reduces the risk of corrosion in case of deviations in the storage conditions.
  • A wide range of products and continuous availability on stock.

Hydraulic breaker is assembled in Russia with the use of imported components (seals, spool pair, charging valve, etc.) from the world's leading manufacturers.

Impulse hydraulic breakers are exported to Australia, South Africa, China, Italy and Brazil.

Warranty - 24 months.

Model nameImpulse 120T Classic for TEREX
Pneumo-hydro accumulatorn/a
Dust sealn/a
Auto-greasingn/a
Underwater operationn/a
Hydraulic breaker typepiston type breaker
Carrier modelTEREX TLB825
Tool operating length, mm400
Tool operating length, inch15.75
CompatibilityTLB815 / 820 / 820 / 840, 860, 890, 970
Maximum pressure, bar200
Breaker length without tool, without mounting plate, mm1030
Breaker length without tool, without mounting plate, inch40.55
Body typeopen
Carrier weight, t4-9
Carrier weight, tonnes (American)4,5-10
Breaker weight, kg265
Breaker weight, lb584.32
Tool diameter, mm68
Tool diameter, inch26.77
Impact Energy, J850
Impact frequency, bpm450-900
Operating pressure, bar90-130
Oil flow, l/min30-50
Oil flow, gallon/min6,6-11
